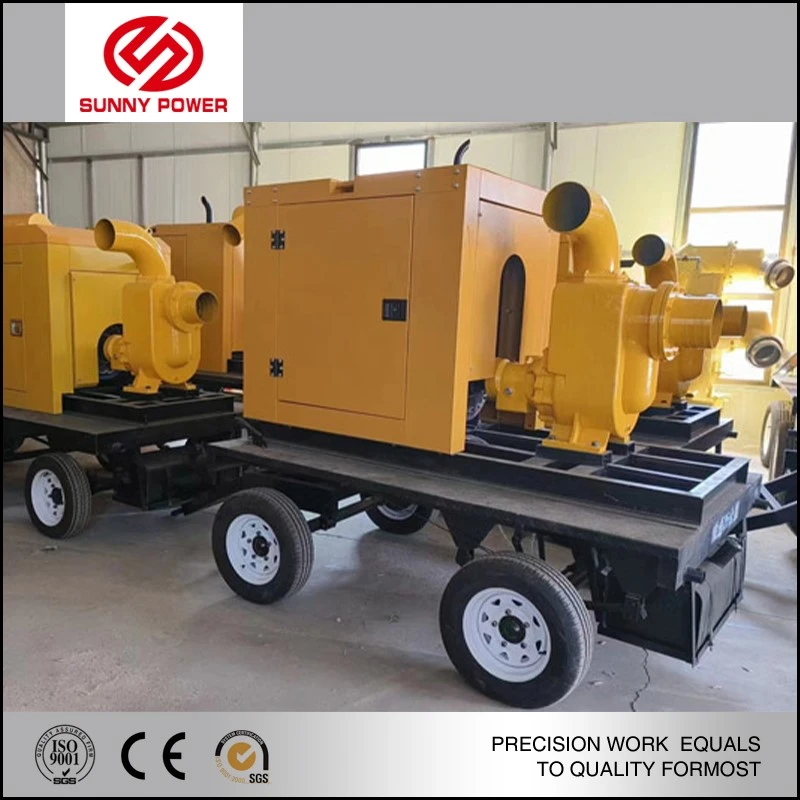

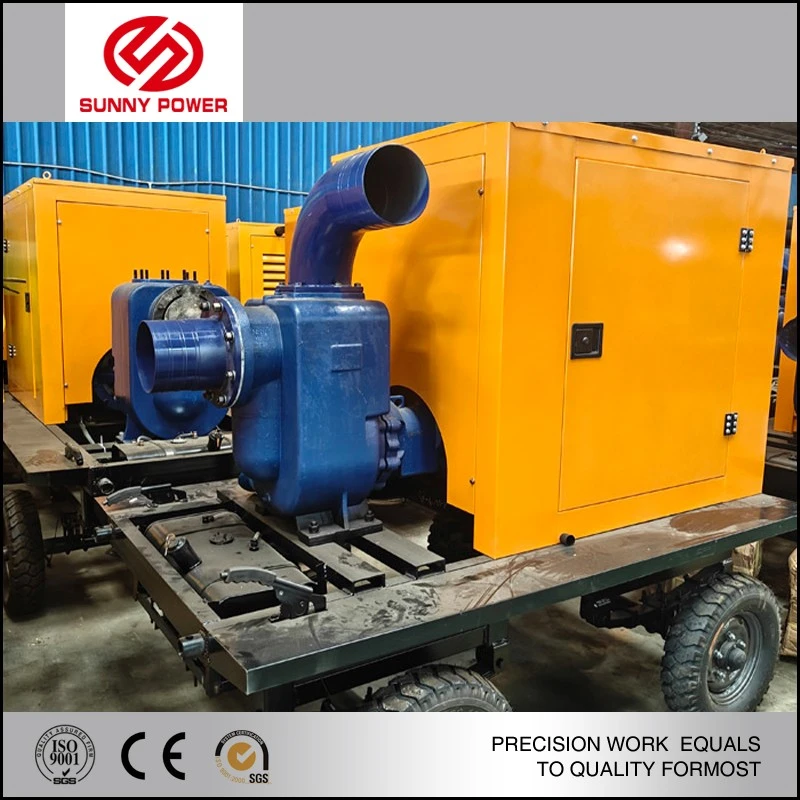

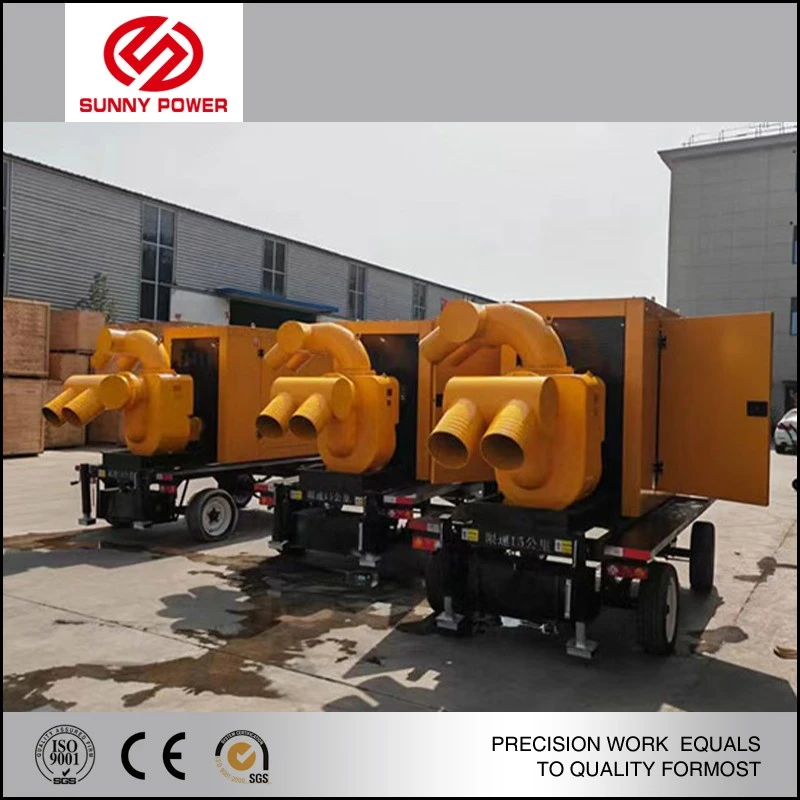

Mobile Forced Drainage Pump Truck

The mobile forced drainage pump truck is a new type of pump that combines self-priming and sewage discharge. It can be used like a general self-priming clean water pump. It can also pump dirt, sediment, waste mineral impurities, feces treatment, and all engineering sewage and colloidal liquids containing large solid particles with a diameter of 60% of the outlet diameter and a fiber length of 1.5 times the impeller diameter. This completely reduces the labor intensity of manpower and is easy to install, use, and repair.

The mobile forced drainage pump truck combines self-priming and non-clogging sewage discharge. It adopts axial reflux external mixing, and through the unique design of the pump body and impeller flow channel, it does not need to install a bottom valve and pour water like a general self-priming clean water pump. It can also suck and discharge liquids containing large solid particles and long fiber impurities. It can be widely used in municipal sewage projects, river pond farming, light industry, papermaking, textiles, food, chemicals, electricity, fiber, slurry mixed suspension, and other chemical media. The most ideal impurity pump.

1. Applicable to urban environmental protection, construction, fire protection, chemical industry, pharmaceutical industry, dye printing and dyeing, brewing, electricity, electroplating, papermaking, petroleum, mining, equipment cooling, tanker unloading, etc.
2. Applicable to clean water, seawater, chemical medium liquid with acidity and alkalinity, and slurry with general paste (medium viscosity ≤100 centipoises, the solid content can reach less than 30%).
3. After the rocker-type nozzle is installed, the water can be flushed into the air and then dispersed into fine raindrops for spraying. It is a good machine for pesticides, nurseries, orchards, and tea gardens.
4. It can be used with any model and specification of filter press, and it is the most ideal matching pump type to send slurry to the filter for filtration.

1. Ambient temperature ≤50℃, medium temperature ≤80℃, special requirements can reach 200℃.
2. The medium PH value of cast iron is 6~9, and that of stainless steel is 2~13.
3. The medium weight does not exceed 1240kg/m³.
4. The self-priming height cannot exceed the specified value of 4.5~5.5m, and the suction pipe length is ≤10m.
5. The diameter of suspended particles in the passing capacity is 60% of the pump diameter, and the fiber length is 5 times the pump diameter.
