This kind of slurry mining pumps must have big gap impeller for smoothly passing. Some are semi open and some are completely open impeller. There are many models for selection. Some are self priming sewage water pumps, some are middle split double suction water pumps.
Some clients will have questions as following:
Question 2. Parameters not available, how can I get the suitable water pump?
Answer: If the above parameters can not be offered, please describe working conditions in your area, you desired to dewater volume and so on. The more in detail, the better. Our engineering department can recommend the most reasonable project case. Please see the following sample specifications including the main parameters needed.
Sample mode
|
Diesel engine model |
Ricardo R6105IZLD |
|
Diesel engine power (KW) |
132 |
|
Cylinder No. |
6 |
|
Water pump model |
300ZW1000-25 |
|
Suction diameter (inch) |
12 |
|
Outlet diameter(inch) |
10 |
|
Outflow rate (m3/h) |
1000 |
|
Head lift (m) |
25 |
|
Suction lift(m) |
6 |
Possible faults of slurry mining pump (general points for reference. Physical points, let's discuss for solutions. )
Sudden self-stop
|
Reasons and features |
Solutions |
|
1.After stop,crank can not move |
|
|
(l)Crank and bearing bush locking |
(l)Repair,replace spare parts |
| (2)Pistons and liners locking | (2) Repair,replace spare parts |
|
2.After stop,crank can move |
|
|
(1)Air entered fuel system |
(l)Clear air |
|
(2)Block in fuel system |
(2)Wash |
|
(3)Air filter block |
(3)Maintenance air filter |
High temperature of cooling water discharged
|
Reasons and features |
Solutions |
|
1.Temperature gauge bad or sensor damaged |
1 .Check and replace |
| 2.Cooling water not enough | 2.Add cooling water,clear air |
|
3.Outflow of cooling water is too small |
|
|
(1) Cooling water pump small |
(1)Check impeller gap, radiator fangap,belts. |
|
(2)Water scale and deposition too much inner |
(2)Clear scale and deposition |
|
4.Radiator with bad efficiency |
4.Clear seeper and deposition |
|
5.Over loading |
5.Adjust to normal loading |

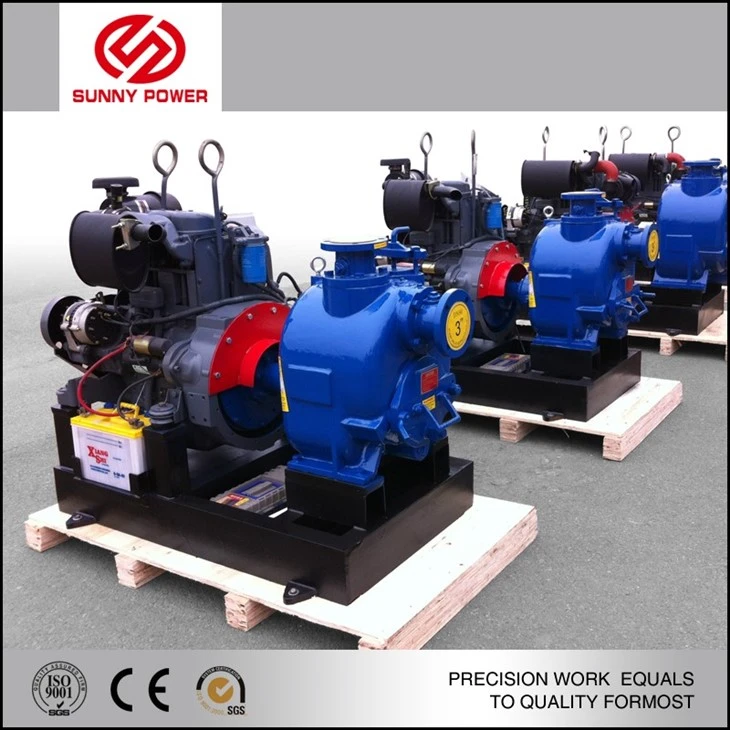

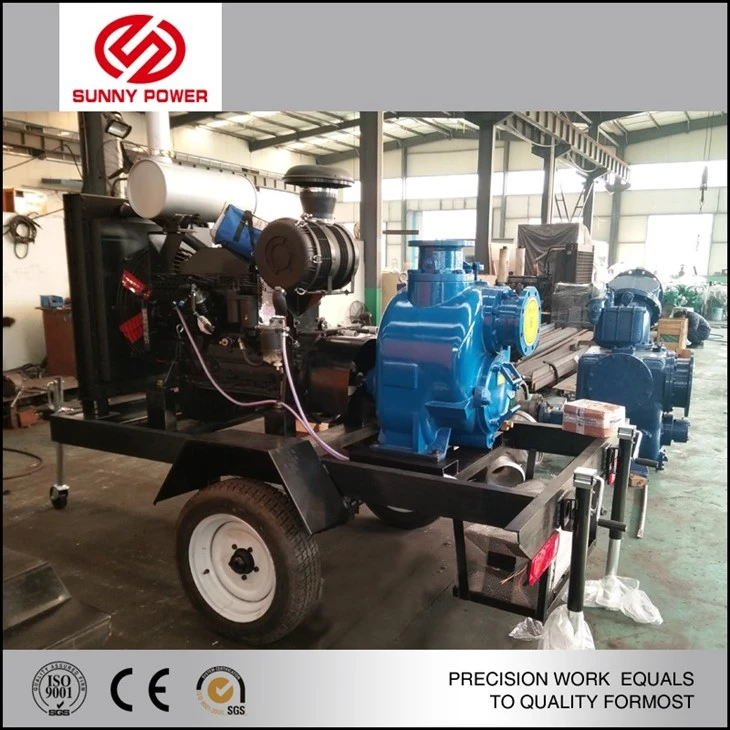

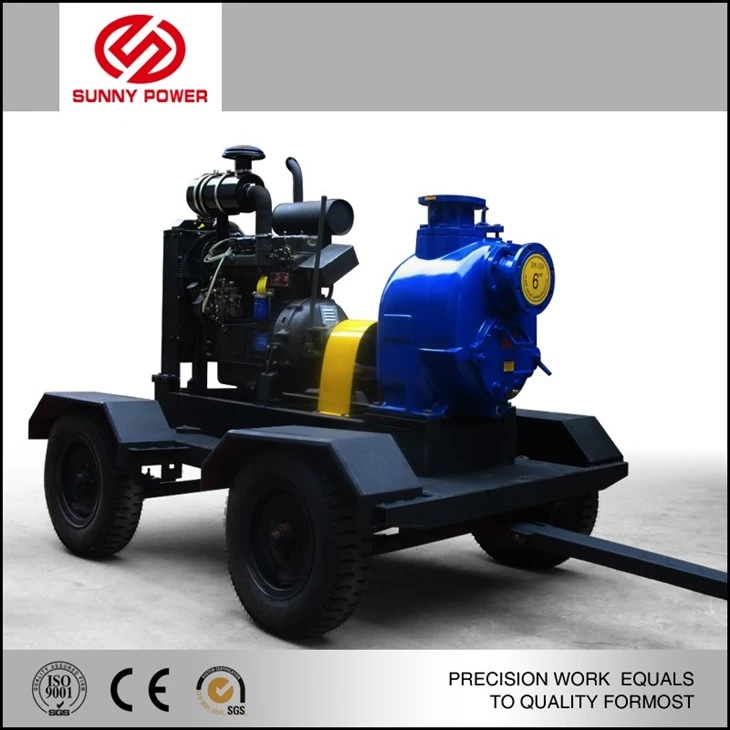

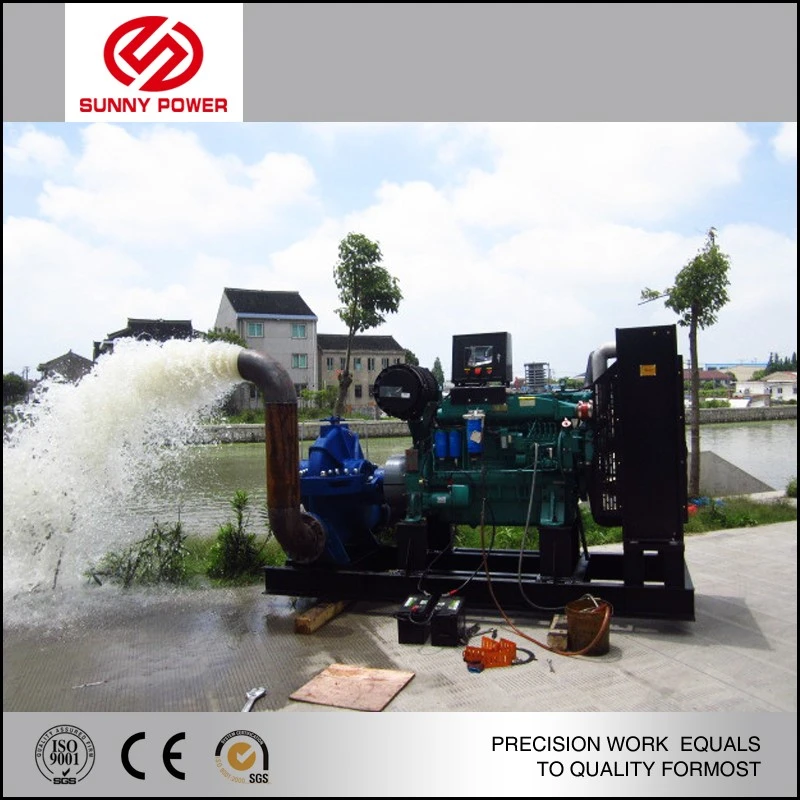

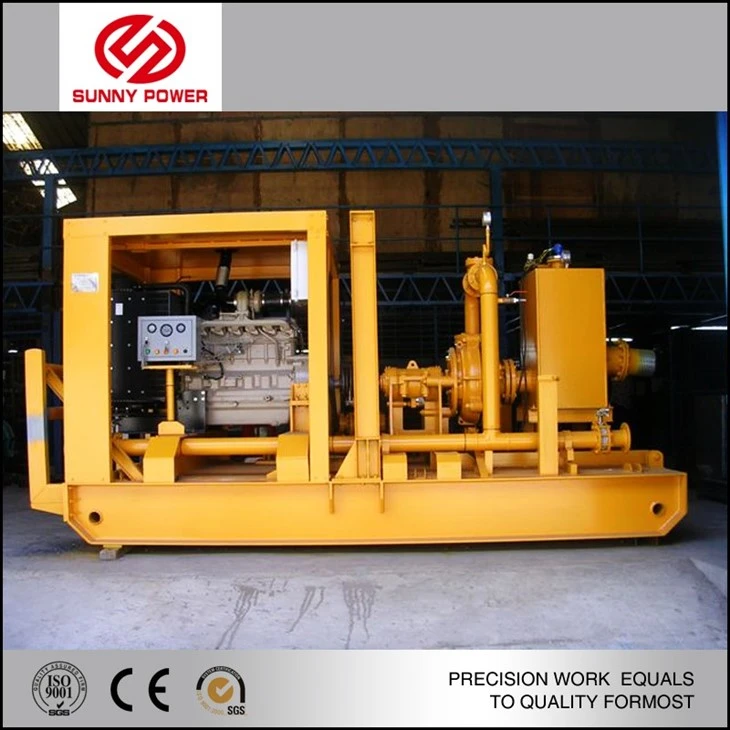

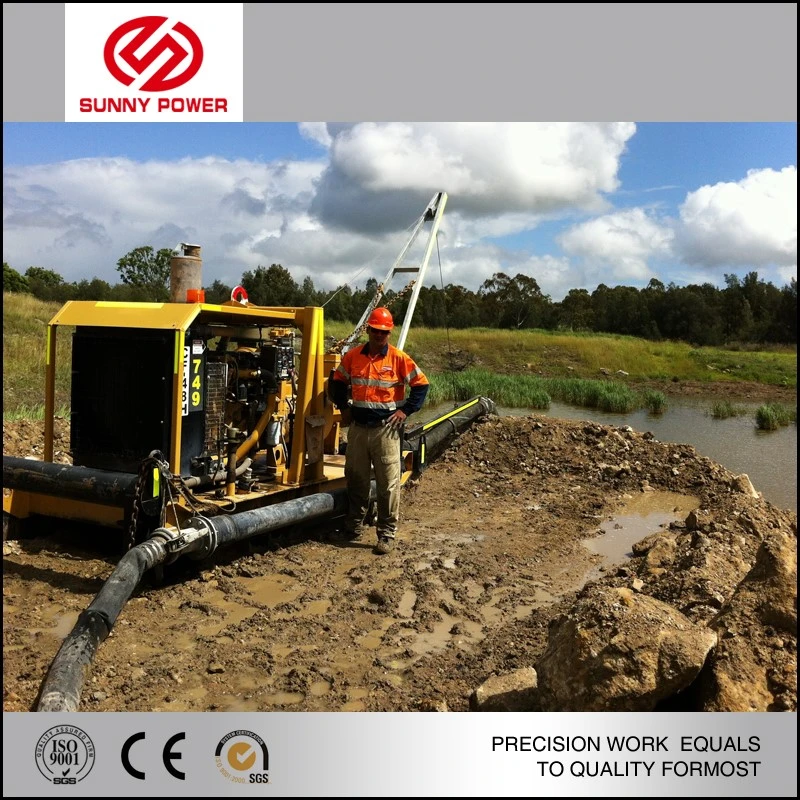

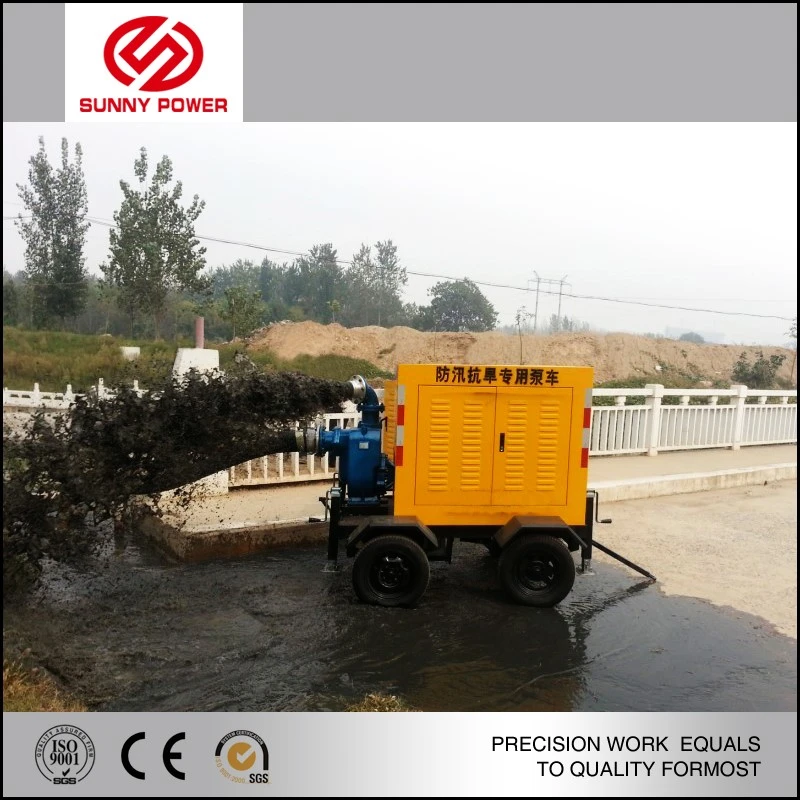

Reference picture of slurry mining pump
