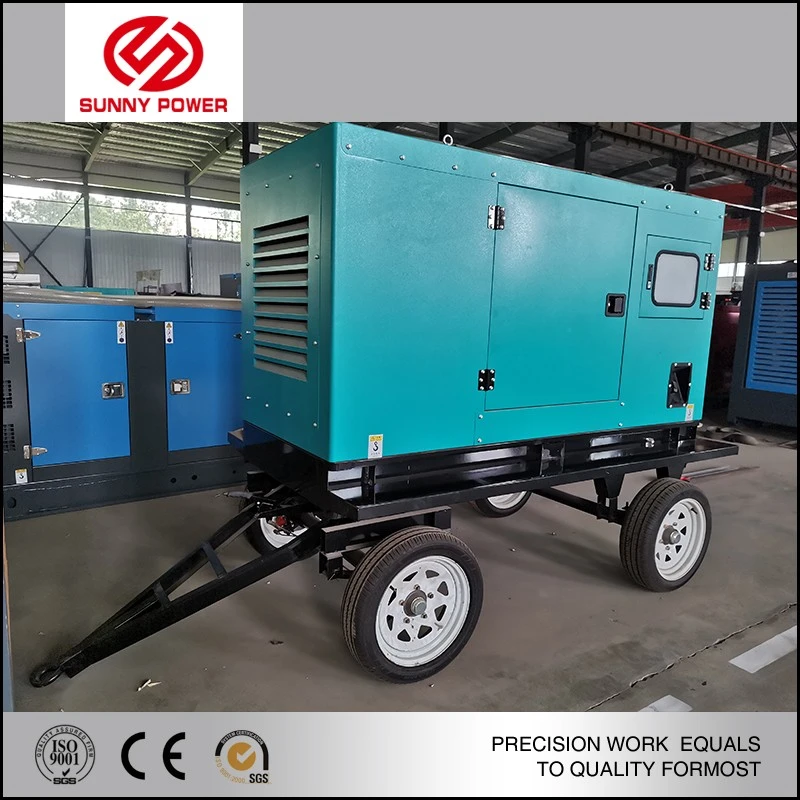

The operation design of the high power diesel generator produced by Weifang Sunnuy Machinery Co., Ltd. adopts a special ATS device and an automatic start device. It does not require manual operation, is more convenient to operate, has good safety, and is worry-free. The high power diesel generator has simple operation, low fuel consumption, economical and practical, durable, high reliability, and eliminates tedious maintenance. It has a protective device to ensure safe operation, a quiet shockproof design, and a mute device to reduce noise emissions.
Generator parameters
| Rated power | 60KW |
| Standby power | 62KW |
| Rated frequency | 50Hz |
| Rated voltage | 220/380V |
| Starting method | Electric Start |
| Mechanism type | Silent Type |
| Power factor | 0.8/1.0 |
| Phase number | single phase/three phase |
| Motor type | excitation motor |
Engine parameters
| Engine type | small power |
| Cooling method | water cooling |
| Rated speed | 1500r/min |
| Cylinder structure | direct injection, four cylinders, inline, water cooling |
| Combustion system | direct injection |
| Intake method | turbocharged |
| Insulation level | H level |
| Speed regulation method | mechanical speed regulation |
| Silencer | industrial silencing |
| Fuel tank capacity | 50L |
| Engine oil type | SAE 10W30 (or CD) |
| Fuel type | Diesel 0#, -10# |
| Generator speed | 1500r/min |
Complete machine parameters
| Fuel meter | Yes |
| Voltmeter | Yes |
| Output indicator | Yes |
| Overload protection | Yes |
| Oil control device | Yes |
| Machine fuel consumption | 200g/kw.h |
| Working time | 8-12H |
| Noise level | 68-75db |
| Machine weight | 800/900kg |
| Overall dimensions | 1700*950*1400 |
Random accessories
High power diesel generator manual, warranty card, certificate, connecting wire, random small tools, tool kit.
High-power diesel generators have the characteristics of high thermal efficiency, good adaptability and wide power range. Therefore, they are widely used in industry, agriculture, transportation and national defense construction.
