Main Features
1. Diesel engine installed can be Cummins, Perkins, Deutz, Volvo, CAT, ISUZU, Yanmar, Weichai, Yuchai, Ricardo, China made brands. Reasonable equipment ensures good performance and fuel saving.
2. If client's working area needs higher suction lift, we can install vacuum assistant system to raise suction to be 9m around.
3. Optional vacuum assist system:
The self-priming height can be raised to 9 meters, which is especially suitable for sewage discharge with a lot of sundries in the liquid.
4. We can offer different suction hose. If heavy duty and long time in use, normally use rubber wire and cloth reinforced hose; if medium use and not so long time, normally use PVC wire reinforced hose and wire reinforced PVC transparent hose. If stationary use in factory or mine pump house, you can use iron of HDPE pipe.
5. Different size of delivery hose can be offered, ranging 2-26inch model. Normally lay flat hose. Surely we can offer HDPE pipe, rubber hose and PVC hose as well as fire fighting hose.
6. Normally, it's better to install one foot valve filter to prevent big solid, long fiber, cloth and large plastic material into water pump body. We can offer iron foot valve 5-26inch model.
Sample mode
|
Diesel engine model |
6BT5.9-P130 |
|
Diesel engine power (KW) |
96 |
|
Cylinder No. |
6 |
|
Water pump model |
300ZW1000-20 |
|
Suction diameter (inch) |
12 |
|
Outlet diameter(inch) |
10 |
|
Outflow rate (m3/h) |
1000 |
|
Head lift (m) |
20 |
|
Suction lift(m) |
6 |
Operating Conditions
● Liquid temperature: 0ºC-40ºC, medium density: ≤1.2x103kg/m3, pH value 5-9.
● Volume ratio of medium solids: ≤2%.
● Maximum particle diameter: 6/8/10/12" ,Pump: 76mm.
● Ambient temperature: ≤40ºC, altitude: up to 1000M.
● Flow range: 300m3/h-1200m3/h.
● Head use range: 10m-38m.
Storage
If long time no use, please storage as following terms:
1. Draw off diesel, oil, water in radiator.
2. Clean the engine and water pump, especially waste oil, dust, and so on.
3. Take off cable from batteries, cut off power.
4. Drain off water inside from screw under the pump body.
5. Clean pump body, impeller, pump body cover.
6. Wash and clear sand or mud inside pump.
7. Cover pump suction and outlet end preventing from sundries entrance.
8. Warehouse should be clean, dry, well ventilated. Corrosion material is prohibited. If storage is longer than 3 months, repeat the above mentioned steps.
Additional information:
Driving Type: Motor or Diesel Engine
Impeller Number:Single-Stage Pump
Working Pressure:Middle Pressure Pump
Influent Type of Impeller:Single suction / Double-Suction Pump
Position of Pump Shaft:Horizontal Pump
Pump Casing Combined: Surface Pump
Impeller:Semi-Open (sewage water pump)
Usage:Irrigation, Flood Draining, Mining,Agricultural Irrigation,Flood Drainage,Mining Machinery,,oil Land Machinery,Municipal Project,Fire Fighting,
Waste Water Discharge,Industrial Water Supply and Drainage,Sea Water Breeding,Stable Pressure Water Supply System,Remote Intelligent Water Supply,off Duty Control.
Trademark:Sunny
Transport Package:Export Plywood Case
Origin:China
HS Code:8413709990
Product Description
Weifang Sunny produced Diesel engine driven water pump, irrigation pump, agriculture sprinkler irrigation pump, PTO pump, centrifugal pump, end suction pump, self priming water pump, slurry pump, mine pump, deep well pump, sewage pump, floating platform pump, fire fighting pump, diesel engine and electric motor dual power pump, boiler feeding pump, etc. mainly featured as following:
Main Parameters:
| Diameter | 2-48inch(DN50-1200mm) |
| Outflow rate | 6-18700 m3/h |
| Head lift | 5-10000m |
| Liquid Temp. | Max 80 ºC |
Multi-purpose solution:
• Fresh water, river water, rain water
• Slurry & semi solid material
• Well pointing - high vacuum pump capacity
• Fire fighting or building high pressure pump station
• 24 hour reliability
• Designed for high ambient environments
Main applications:
• Building & Construction - well pointing and sump pumping
• Water & Waste - over pumping and systems bypass
• Quarries & Mines - sump pumping
• Emergency Water Control - sump pumping
• Docks, Ports & Harbors - sump pumping and stabilization of loads
Standard equipment:
Diesel engine assembly
Water pump assembly
Flexible shaft coupling unit
Steel mounting skid
Optional equipment:
Built-in fuel tank (Additional separate fuel tank is available.)
Clutch or gearbox
Battery
Engine and water pump protection system
Automatic start and self shut off function(ATS AMF)
Remote control/off duty control/PC control or mobile phone control
Trailer and weather canopy
Suction hose, delivery hose or lay flat hose, PP/PE pipe, wire reinforced PVC or rubber hose.
Foot valve, gate valve, non-return valve, butter fly valve, pipe fittings and hose clamps
Engine and water pump additional spare parts relatively.
Example case illustration:
1. Series: IS, single stage, end suction pump, centrifugal pump, covering 242 models
Description: Diesel water pump, irrigation pump, centrifugal pump, end suction pump, diesel engine driven water pump, diesel motor pump
Application: irrigation, water transfer, fire fighting, mine dewatering,
Pump diameter: 3inch to 10inch
Outflow scope: 50m3/h to 630m3/h
Head lift(HMT): 10m to 140m
Outlet pressure: 0.1MPa to 1.4MPa; 14PSI to 200PSI
Engine power scope: 15KW(20HP) to 170KW(231HP)
Engine brand optional: Cummins, Perkins, Volvo, MTU, Deutz, Weichai, Yuchai, Weifang, Isuzu, Yanmar, Lovol, Yangdong, Xichai, Shangchai
Working principle: centrifugal, single stage, single suction,
Handling medium: fresh water, river water, non corrosive liquid
Equipment optional: stationery model, two-wheel trailer model, four-wheel trailer model, weather canopy covered model, silent case covered model
Operation panel: Standard instrument box, Engine protection panel Auto control panel, ATS panel, Remote GSM control panel.
2. Series: SH, S, double suction, middle split water pump, covering 65 models,
Description: Diesel water pump, irrigation pump, centrifugal pump, middle split pump, diesel engine driven water pump, diesel motor pump, diesel engine driven sewage water pump,
Application: irrigation, water transfer, fire fighting, mine dewatering, flood draining, sewage water drainage,
Pump diameter: 6inch to 32inch
Outflow scope: 150m3/h to 6500m3/h
Head lift(HMT): 10m to 140m
Outlet pressure: 0.1MPa to 1.4MPa; 14PSI to 200PSI
Engine power scope: 45KW(61HP) to 1000KW(1360HP)
Engine brand optional: Cummins, Perkins, Volvo, MTU, Deutz, Weichai, Yuchai, Weifang, Lovol, Yangdong, Xichai, Shangchai
Working principle: centrifugal, single stage, double suction,
Handling medium: fresh water, river water, non corrosive liquid, rain water, sewage water
Equipment optional: stationery model, two-wheel trailer model, four-wheel trailer model, weather canopy covered model, silent case covered model
Operation panel: Standard instrument box, Engine protection panel Auto control panel, ATS panel, Remote GSM control panel.
3. Series: ZW, ZX, self priming sewage water pump, covering 86 models,
Description: Diesel water pump, irrigation pump, centrifugal pump, self priming pump, diesel engine driven water pump, diesel motor trash pump, diesel engine driven sewage water pump,
Application: irrigation, water transfer, flood draining, mine dewatering, trash water transfer, sewage water drainage,
Pump diameter: 4inch to 14inch
Outflow scope: 100m3/h to 1700m3/h
Head lift(HMT): 10m to 32m
Outlet pressure: 0.1MPa to 0.32MPa; 14PSI to 45PSI
Engine power scope: 15KW(20HP) to 216KW(293HP)
Engine brand optional: Cummins, Perkins, Volvo, MTU, Deutz, Weichai, Yuchai, Weifang, Lovol, Yangdong, Xichai, Shangchai
Working principle: self priming, centrifugal, single stage, single suction,
Handling medium: fresh water, river water, non corrosive liquid, rain water, sewage water
Equipment optional: stationery model, two-wheel trailer model, four-wheel trailer model, weather canopy covered model, silent case covered model
Operation panel: Standard instrument box, Engine protection panel Auto control panel, ATS panel, Remote GSM control panel.
4. Series: HW, mixed flow water pump, covering 48 models,
Description: Diesel water pump, irrigation pump, centrifugal pump, diesel engine driven water pump, diesel motor pump, flood draining pump,
Application: irrigation, water transfer, flood draining, mine dewatering, reservoir water control, sewage water drainage,
Pump diameter: 6inch to 48inch
Outflow scope: 180m3/h to 16000m3/h
Head lift(HMT): 2m to 14m
Outlet pressure: 0.02MPa to 0.12MPa; 3PSI to 20PSI
Engine power scope: 7.5KW(10HP) to 400KW(545HP)
Engine brand optional: Cummins, Perkins, Volvo, MTU, Deutz, Weichai, Yuchai, Weifang, Lovol, Yangdong, Xichai, Shangchai
Working principle: mixed outflow, centrifugal, single stage, single suction,
Handling medium: fresh water, river water, non corrosive liquid, rain water, sewage water
Equipment optional: stationery model, two-wheel trailer model, four-wheel trailer model, weather canopy covered model, silent case covered model
Operation panel: Standard instrument box, Engine protection panel Auto control panel, ATS panel, Remote GSM control panel.
5. Series: D,DG,DM, multistage high pressure pump, covering 260 models,
Description: Multistage water pump, High pressure water pump, Diesel water pump, irrigation pump, centrifugal pump, diesel engine driven water pump, diesel motor pump, boiler feeding pump,
Application: irrigation, water transfer, mine dewatering, fire fighting, building water supply,
Pump diameter:2inch to 8inch
Outflow scope: 25m3/h to 280m3/h
Head lift(HMT): 60m to 420m
Outlet pressure: 0.6MPa to 4.0MPa; 85PSI to 600PSI
Engine power scope: 15KW(20HP) to 600KW(816HP)
Engine brand optional: Cummins, Perkins, Volvo, MTU, Deutz, Weichai, Yuchai, Weifang, Lovol, Yangdong, Xichai, Shangchai
Working principle: multistage, single suction, centrifugal,
Handling medium: fresh water, river water,
Equipment optional: stationery model, two-wheel trailer model, four-wheel trailer model, weather canopy covered model, silent case covered model
Operation panel: Standard instrument box, Engine protection panel Auto control panel, ATS panel, Remote GSM control panel.
6. Series: LQJ, long shaft deep well pump, covering 128 models,
Description: Multistage water pump, Deep well pump, Long shaft deep well pump, High pressure water pump, Diesel water pump, irrigation pump, centrifugal pump, diesel engine driven water pump, diesel motor pump,
Application: irrigation, water transfer, mine dewatering, fire fighting, building water supply,
Pump diameter:2inch to 20inch
Outflow scope: 25m3/h to 2000m3/h
Head lift(HMT): 28m to 116m
Outlet pressure: 0.28MPa to 1.16MPa; 40PSI to 165PSI
Engine power scope: 15KW(20HP) to 500KW(680HP)
Engine brand optional: Cummins, Perkins, Volvo, MTU, Deutz, Weichai, Yuchai, Weifang, Lovol, Yangdong, Xichai, Shangchai
Working principle: multistage, single suction, centrifugal, vertical,
Handling medium: fresh water, river water, deep well, bore hole,
Equipment optional: stationery model, two-wheel trailer model, four-wheel trailer model, weather canopy covered model, silent case covered model
Operation panel: Standard instrument box, Engine protection panel Auto control panel, ATS panel, Remote GSM control panel.
7. Series: PTO, tractor PTO pump, end suction, middle split or mixed flow pump, covering 128 models,
Description: mixed flow water pump, sewage pump, Long shaft mud pump, big outflow pump, Diesel water pump, irrigation pump, centrifugal pump, tractor driven water pump, diesel motor pump,
Application: irrigation, water transfer, mine dewatering, fire fighting, flood draining, sewage water transfer,
Pump diameter:4inch to 26inch
Outflow scope: 100m3/h to 2500m3/h
Head lift(HMT): 2m to 14m
Outlet pressure: 0.02MPa to 0.14MPa; 3PSI to 20PSI
Engine power scope: 7.5KW(10HP) to 100KW(136HP)
Tractor: according to client's locally, tell us PTO rotation speed, connecting shaft parameters.
Working principle: end/side suction, centrifugal,
Handling medium: fresh water, river water, rain water, flood, sewage water,
Equipment optional: stationery model, two-wheel trailer model, four-wheel trailer model, weather canopy covered model, silent case covered model
Operation panel:
8. Series: XBC/XBD, fire fighting water pump system, dual power fire fighting system: diesel engine water pump + electric motor pump + jockey pump, stable pressure tank if necessary, covering 119 models,
Description: high pressure pump, Long shaft mud pump, big outflow pump, Diesel water pump, fire fighting pump, centrifugal pump, high pressure water pump, diesel motor pump,
Application: irrigation, water transfer, mine dewatering, fire fighting, flood draining, sewage water transfer,
Pump diameter:4inch to 14inch
Outflow scope: 100m3/h to 1250m3/h
Head lift(HMT): 32m to 215m
Outlet pressure: 0.32MPa to 2.15MPa; 45PSI to 300PSI
Engine power scope: 30KW(40HP) to 400KW(545HP)
Engine brand optional: Cummins, Perkins, Volvo, MTU, Deutz, Weichai, Yuchai, Weifang, Lovol, Yangdong, Xichai, Shangchai
Working principle: multistage, single suction, centrifugal, vertical,
Handling medium: fresh water, river water, deep well, bore hole,
Equipment optional: stationery model, two-wheel trailer model, four-wheel trailer model, weather canopy covered model, silent case covered model
Operation panel: Standard instrument box, Engine protection panel Auto control panel, ATS panel, Remote GSM control panel.
9. Series: GMZ/ZJ/ZG, sand pump,slurry pump, covering 108 models,
Description: Diesel sand pump, slurry pump, diesel engine driven sand pump, diesel motor mud pump, mining pump,
Application: sand industry, mine industry.
Pump diameter: 6inch to 14inch
Outflow scope: 180m3/h to 2000m3/h
Head lift(HMT): 10m to 90m
Outlet pressure: 0.1MPa to 0.9MPa; 12PSI to 128PSI
Engine power scope: 55KW(75HP) to 400KW(545HP)
Engine brand optional: Cummins, Perkins, Volvo, MTU, Deutz, Weichai, Yuchai, Weifang, Lovol, Yangdong, Xichai, Shangchai
Working principle: mixed outflow, centrifugal, single stage, single suction,
Handling medium: sand, mud, slurry material,
Equipment optional: stationery model, two-wheel trailer model, four-wheel trailer model, weather canopy covered model, silent case covered model
Operation panel: Standard instrument box, Engine protection panel Auto control panel, ATS panel, Remote GSM control panel.
Corner of workshop
Services:
1. One year or 1000 working hours guarantee of whole machine except for wear parts;
2. Technical support by email whole day;
3. Calling service;
4. User's manual available;
5. Installation guide for clients from both China and abroad;
6. Maintance and replacement service;
FAQ
Q1: Can I get some samples? A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.
Q2: Do you receive customized order? A: Yes, ODM & OEM are welcomed.
Q3: What's the lead time? A: According to the order quantity, small order usually needs 3-5 days, big order needs negotiation.
Q4: What's your warranty terms? A: We supply 12 months warranty time.
Q5: What's your payment terms? A: We receive Escrow, T/T, West Union, Cash and etc.
Q6: Why choose you?
1: Professional and experienced manufacturer
2. 100% original parts and unit produced by our own workshop
3. On Time Delivery
4. Factory Direct Price
5. Strict quality control and processing manegement
6. We will reply you for your inquiry in 24 hours.
Remarks:
If you need extra more information, please contact us by following inquiry messages, business email, whatsapp, or other possible way, we are sure to reply you at the first time. More new models are in R&D. When comes into being, we will publish here.

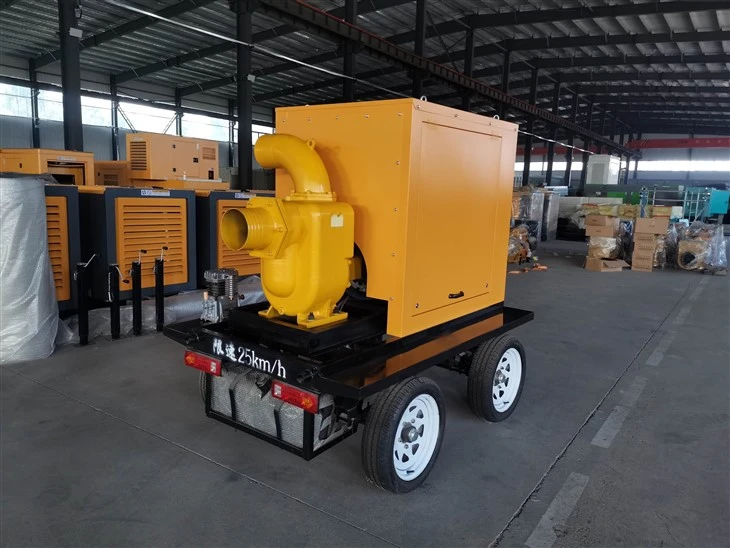

Reference picture of self priming sewage pump
