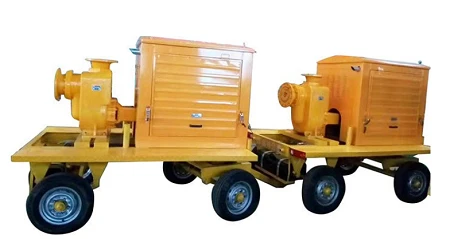

The correct installation of the inlet and outlet pipes of the diesel engine water pump unit is the key to ensure the normal use of the equipment. Therefore, when installing the inlet and outlet pipes, the user must strictly follow the installation steps to ensure that it can achieve good results in the production of the equipment.
1. First, fix the water pump flange and the pipe flange with bolts.
2. Then, remove the fixing bolts of the diesel engine water pump unit pipe flange, and weld the pipe and flange to reduce the deformation caused by the high temperature of welding.
3. The corresponding pipe flanges on both sides of the inlet and outlet pipes of the diesel engine water pump unit should be bolted, and the bolts should be tightened in a free state.
4. Check the connection quality of the corresponding pipe flanges on both sides of the inlet and outlet pipes, and check that the concentricity of the pump and the engine should be guaranteed to be within the allowable accuracy range.
5. Appropriately increase the straight pipe length of the inlet and outlet water pipes of the diesel engine water pump unit to reduce the hydraulic loss caused by the reducer elbow.
6. When installing the pipe, unnecessary bending should be avoided as much as possible, especially 90° elbows.
7. The connection of the inlet and outlet pipes of the diesel engine water pump unit should be flexible to avoid the huge stress caused by the thermal expansion and contraction of the metal pipe, which will lead to the excessive accuracy of the water pump alignment and the difficulty of overhauling and disassembling the water pump valve.
8. When the pipeline is connected to the reducer, the water inlet pipe should be equipped with a one-way eccentric reducer and installed horizontally. The shrink pipe can use a straight cone pipe on the outlet pipe and the riser. The fluctuation of the liquid in the pipeline should be avoided. Improper use of liquid fluctuation shrinkage will form an air chamber in the pipeline, thereby hindering the normal use of the pump.
9. The pipe of the diesel engine water pump unit should be as short and straight as possible. The horizontal water inlet pipe must be gradually raised to the pump inlet with a slight slope of 20/1000.
10. The pipe should be equipped with a constant head/check valve or a check valve + pressure holding valve + flow regulating valve. The constant head/check valve also has the functions of pressure holding valve, anti-water hammer, check valve, flow regulating valve, etc.
The above are the installation requirements for the inlet and outlet pipes of the diesel engine water pump unit. We all know that the selection and installation of the inlet and outlet pipes of the pump unit are very important. It connects the machine and the working material and is indispensable in production equipment. If you have any further questions, please contact us.,
